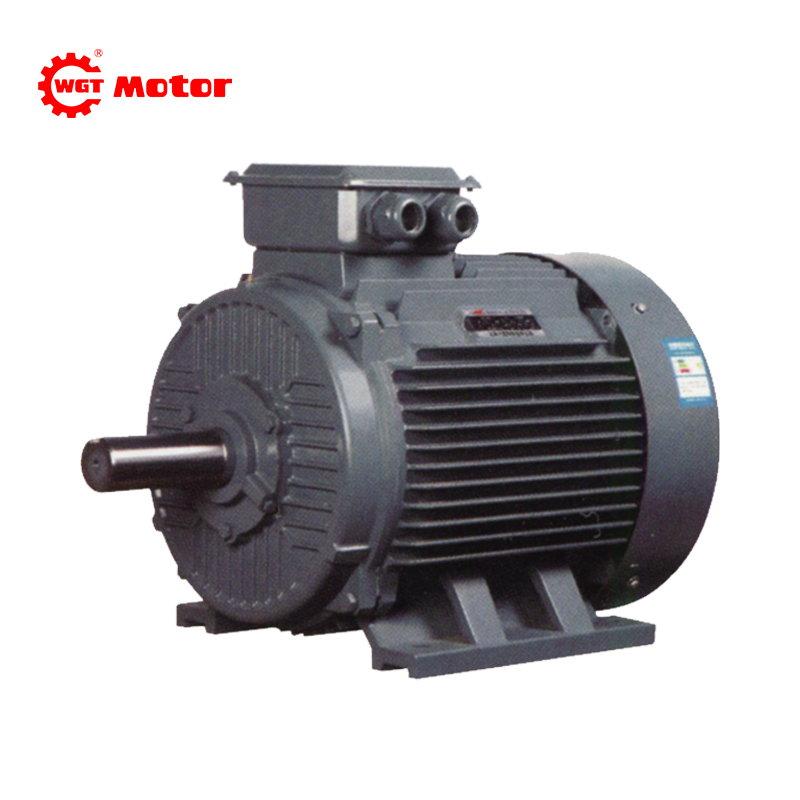

The YE3 series premium efficiency three-phase asynchronous motor is inline with IE3 effieiency standard in the provisions of IEC60034-30-2008.And the improvement of the efficiency in its design is in line with the state`s requirements on the energy saving and consumption reducing of themanufacturing sector. YE3 series premium efficiency three-phase asynchronous motor with the mounting dimension in accordance with standard IEC60034,lt hasgood features like optimum structure,attractive appearance,low noise,high efficiency,high protection class as well as high insulation class.YE3series premium efficiency three-phase asynchronous motor can be widely used in various kinds of general use machineries like fans,pumps,machin tools,compressors,transportation and so on,and can also be used in the hazardous areas with oil and chemical,steel plants,mining industry.

Ambient Temperature:-15C~40C Altitude: up to 1000 meters Rated Power:0.18kW-315kW Frame Size: H63-H355 Frame Material: Cast lron Rated Voltage:220V-1140V Rated Frequency:50Hz/60Hz Ingress Protection: 1P54/IP55/IP56/IP65 Insulation Class: F/HWork Duty:Sl-S6

Ambient Temperature:-15C~40C Altitude:up to 1000 meters Rated Power:0.18kW-315kW Frame Size:H63-H355 Frame Material:Castlron Rated Voltage:220v-1140V Rated Frequency: 50Hz/60Hz Ingress Protection:IP54/IP55/IP56/IP65Insulation Class: F/H Work Duty:S1-S6

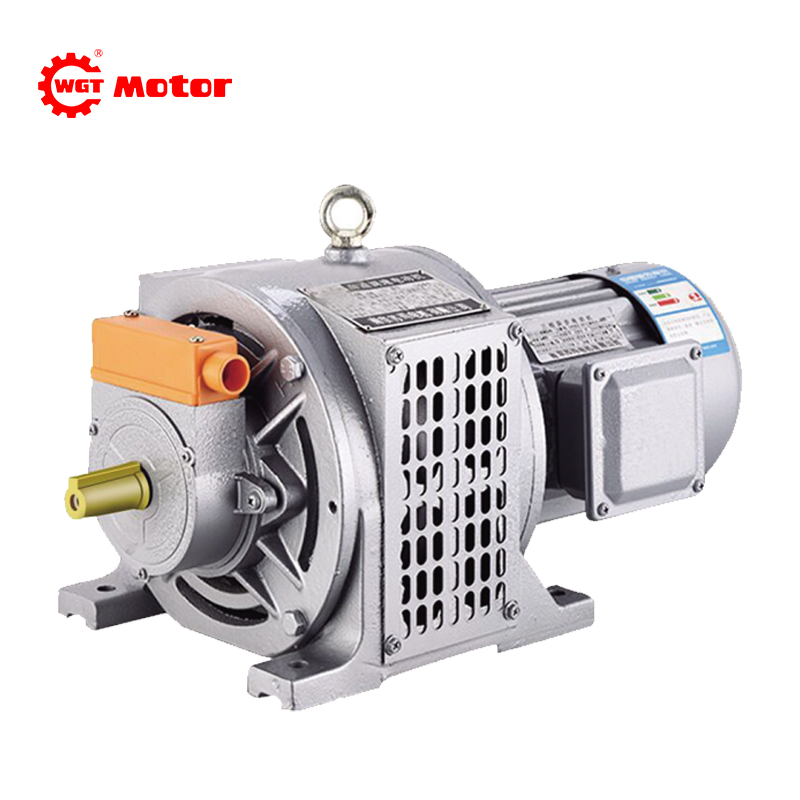

YCT series of electromagnetic speed motor is widely used inconstant torque stepless speed regulation of variousoccasions, such as:textile,chemicals, film production,chemical fiber, metallurgy, paper, cement, rubber, wire, sugar,plastic, Power plants and other industrial equipment for dragtorque reduction of the centrifugal pump and fan load. Powerrange:0.55~90kW Motor Center High:112~335mm

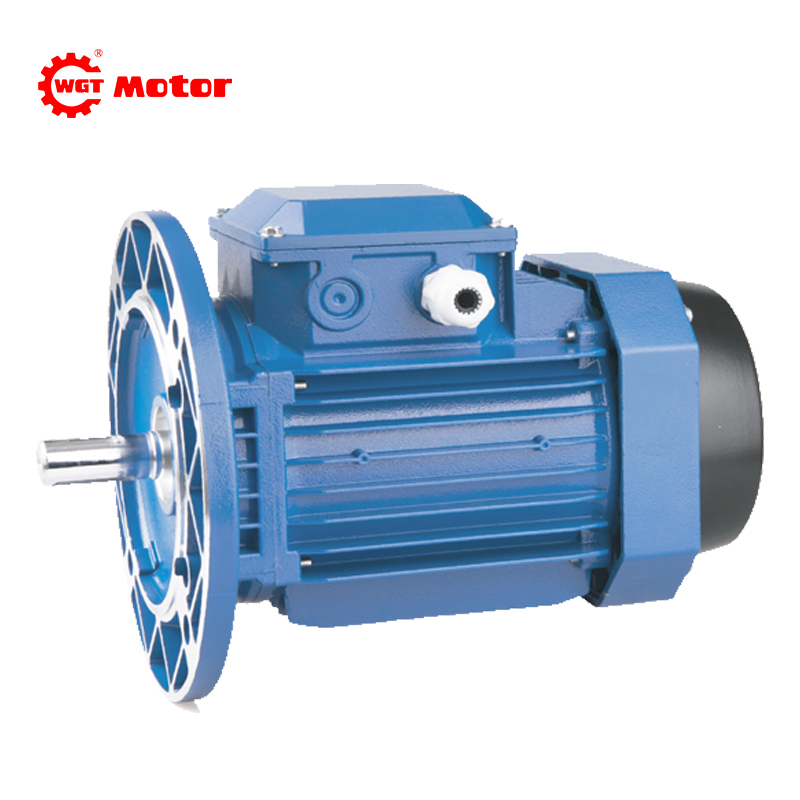

Details site condltion: MS series ultra-high efticiency three-phase nduction motorsare suitable for mostsiluations and ervironmerts. The standardoperating conditions of the motor range from -20'C to + 40 'Cwith an altitude of 1000 meters. Temperature rise and insulation: The motoris designed according to Clas F insulation(155 C)and tested according to Class Binsulation (80K).The service lite and rellabllty of the motor are guaranteed. Cooling and ventlation: The Standard cooling mode Is totally enclosed selfi-fanoooling(TEFC).Standard Motors are equipped with anauxiliary flow plastic fan. Comply with IC411 in IEC 60034-6, Protectionlevel: The protection grade of the motor is |P55 and can be used in dusty or wetervironment. Higher Protection Grade Motors are also available upon request. Motor protection: PTC,PT100 and other windlings and bearings can be installed accordling the requirements of temperature and prolection devices. Voltage,frequency: Can Be designed in the range of 200-660Vartirary vohage 50Hz motor, When the supply volage deviates from the ratedvoltage by t 5%, it can sill run well. Vibration: MS series ulra-frigh efieney three-phase indsuetion motonrs in o-1oad V/ibrationSpeed Class A, Class B motors are avallable upon special request. Junction boxlocation: The junction box its a standard MS series motor above or to the right of the frame. Qualily Assurance: From the product design to the product factory, In accordance with the ISO900quality cerilication $ystem,strict complianoe with quality procedures.

Technical Data: Centre height of frame:80-280mm Power range:0.35-82kW Rated voltage:380V(special should order) Rated frequency:50Hz or 60Hz Protection class:IP54or IP55 Insulation class:F/H Duty type:Sl
